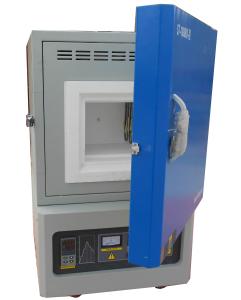

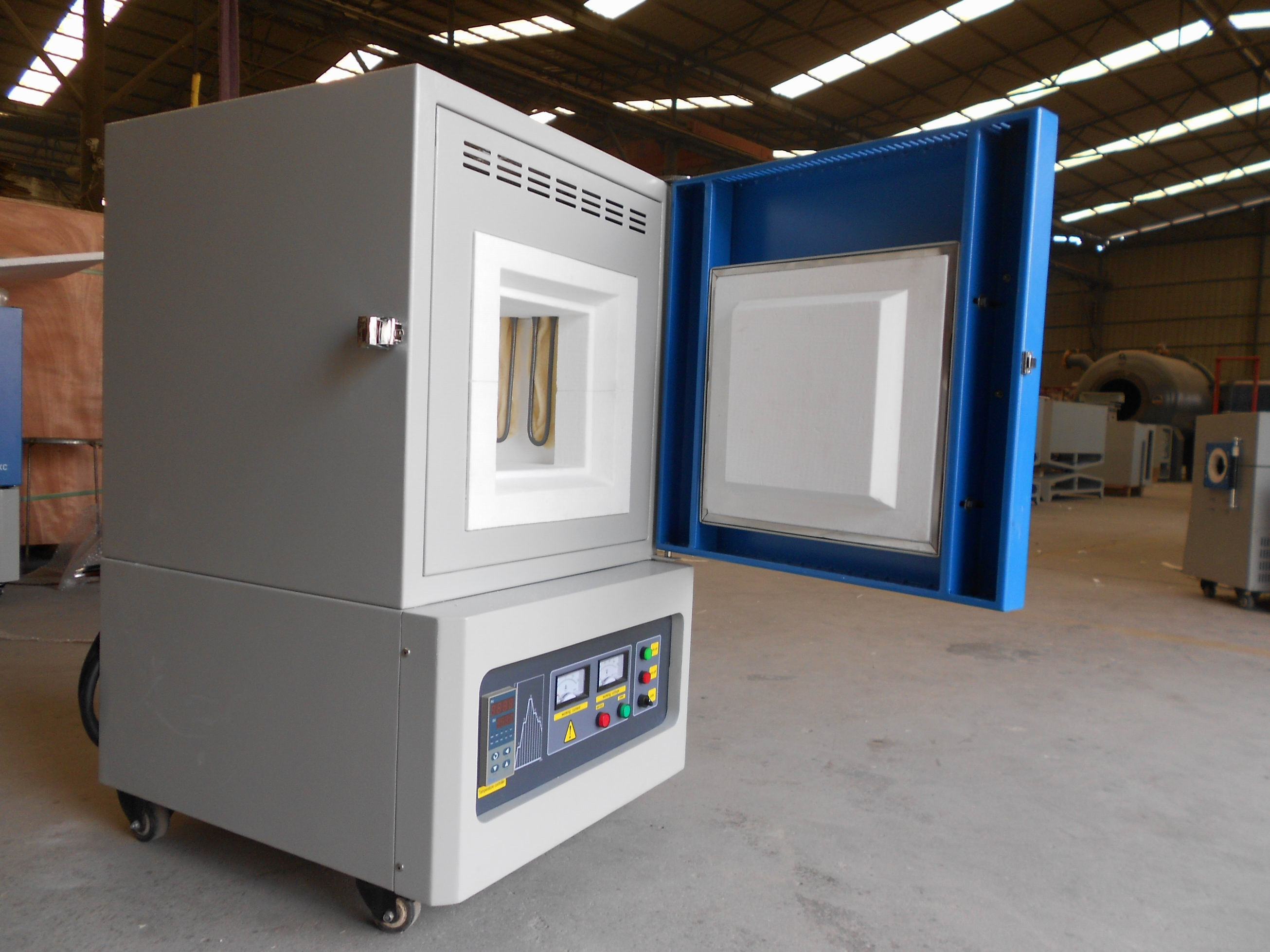

MoSi2 Rod Heating High Temperature Lab Muffle Furnace
20 ℃ / Min Heating Rate
High Temperature Lab Muffle Furnace Application:
Lab muffle furnace mainly used in chemical analysis, physical decomposition and synthesis, super hard materials (such as ceramic), rare and precious metal smelting and purification, metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientificresearch institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.
Lab Muffle Furnace Function & Features:
Lab muffle chamber furnace adopted high quality alumina polycrystalline fiber, which used Japanese technology (vac-sorb forming alumina polycrystalline fiber) with good insulation and durability properties, high tensile strength and no miscellaneous ball; Chamber surface coated with imported 1700 degree high temperature resistant heat insulation coating, it can improve the reflectivity and the heat efficiency of furnace, and prolong the service life of furnace. So this lab muffle furnace much more energy saving than the furnace use common fiber materials.
Chamber Lab Muffe Furnace Technical Data :
| Model | SP-1800B-1 high temperature lab muffle furnace |
| Power supply | AC 220V 50/60HZ |
| Furnace chamber | 100*100*100mm(W x H x D Customizable) |
| Rated power | 2KW |
| Furnace chamber | 1900 type alumina polycrystalline fibers furnace chamber, scientific design and with durable, good insulation properties. |
| Heating elements | High quality silicon molybdenum rod (MoSi2 rod) |
| Thermocouple | B-type double platinum rhodium thermocouple |
| Temperature control mode | The temperature control system uses artificial intelligence technology, with PID control, self - tuning function, 50 segment heating and cooling program |
| Continuous working temperature | ≤1700℃ |
| Maximum temperature | 1800℃ |
| Max. Heating rate | 20℃/min |
| Recommended heating rate | 15℃/min |
| Temperature control accuracy | ±1℃ |
| Standard accessories | Door brick 1 piece ;Crucible tongs 1 piece |
| Optional accessories | Furnace hobs , a variety of corundum crucible, oven glove,computer control software and paperless recorder, etc. |
Standard model of chamber lab muffle furnace :
| Model | Max. Temp. | Chamber size(WxHxD mm) | Working voltage and power |
| SP-1800B-1 | 1800℃ | 100x100x100mm(4”x4”x4”) | AC,1-phase,220V/1.5KW |
| SP-1800B-4.5 | 1800℃ | 150x150x200mm (6"x6"x8") | AC,1-phase,220V.4.5KW |
| SP-1800B-8 | 1800℃ | 200x200x200mm (8"x8"x8") | AC,1-phase,220V,6KW |
| SP-1800B-12 | 1800℃ | 200x200x300mm (8"x8"x12") | AC,1-phase,220V,8KW |
| SP-1800B-36 | 1800℃ | 300x300x400mm (12"x12"x16") | AC,3-phase,380V,16KW |
Warranty: One year limited warranty with lifetime support, excluding heating element
and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage
from wrong operate and use are not under this coverage
Packing and shipping :
Lab muffle furnaces are covered with polyfoam/sponge before put them into the plywood carton,which not only has good shock absorption, impact resistance and nontoxic, odorless, moisture corrosion etc.
Shipment by sea, by air or by express as per customer's requirement.
Product Tags:
|
|
MoSi2 Rod Heating High Temperature 20C/Min Lab Muffle Furnace Images
|
