Factory MoSi2 Molybdenum Disilicide Heater Laboratory Furnace Heating
A. Molybdenum Disilicide Heating Elements Introduction:
Silicon molybdenum rod resistive electric heating element, based on molybdenum disilicide, resistant to high temperature and oxidation. When used in a high-temperature oxidizing atmosphere, a layer of bright and dense quartz (SiO2) glass film is formed on the surface, which can protect the inner layer of the silicon-molybdenum rod from oxidation, and the silicon-molybdenum rod element has unique high-temperature oxidation resistance.
Mosi2 heating element consists of hot zone and cold zone, the welding point is beautiful ,smoothly, without bump
It should be pointed out that element cannot be used for rather long time in 500-1700°C, or it will be powdered owing to the strong oxidizing action in low temperature.
B. Molybdenum Disilicide Heating Elements charaters:
1. Diameter:3/6mm;6/12mm;9/18mm;12/24mm
2. Length:Lu length from 150 to 700mm,Le length from 150 to 600mm,customized is available .
3. Operation temperature: from 500C to 1700.C .Max temperature can up to 1800.C

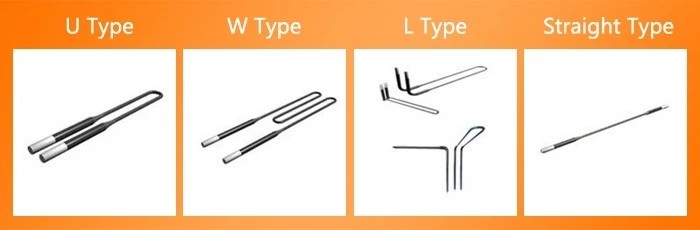

4. Shape : U type ; W type ;straight type ;L type
5. Function: ceramic ,magnetic material,glass ,metallurgy ,fireproofing material furnace
C. Physical property of molybdenum disilicide heating element :
| Volume Density | Bending Strength | Vickers Hardness | Porosity | Water absorption | Heating Elongation Rate |
| 5.5g/cm³ | 15-25kg/cm² | (HV)570kg/mm² | 7.4% | 1.2% | 4% |
D. Operation temperature of MoSi2 rod heating element in different atmosphere
| Atmosphere | 1700 Type | 1800 Type |
| Air | 1700 | 1800 |
| N2 | 1600 | 1700 |
| He | 1600 | 1700 |
| -80°C Dry H2 | 1150 | 1150 |
| -20°C Wet H2 | 1450 | 1450 |
| 10%CO2, 50%CO, 15%H2 | 1600 | 1700 |
| 40%CO2, 20%CO | 1400 | 1450 |
| Cracked and Partially Burnt Ammnia | 1400 | 1450 |
Please tell us the following data of molybdenum disilicide MoSi2 rod heating element when send enquiry to us :
d = the diameter of hot zone ?
c = the diameter of cold zone ?
Le = the length of hot zone ?
Lu = the length of cold zone ?
a=Shank spacing
g=junction length
How many pcs ?
Packaging & Shipping of MoSi2 heating element :
1. From the inside to outer packaging, is foam sponge, carton, wooden case.
2. Sea or Air transportation, DHL express.
3. Please make sure the 'shipping address' is your confirmed address.
4. We do check everything in good condition before we ship your parcel out.
5. We will process your order ASAP after payment is confirmed.
