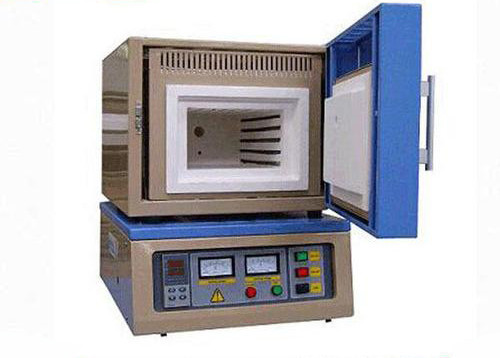

1200Degree Rapid Heating Resistance Lab Muffle Furnace New Material Development
Description of resistance lab muffle furnace:
Resistance lab muffle furnace is adopted high quality resistance wire as heating element with dual shell structure and intelligent auto-control temperature system, SCR control, phase shifting trigger. The resistance lab muffle furnace chamber is adopted the 1400 type imported polycrystalline alumina fiber. Equipped with intelligent cooling system between the dual shell, when the surface temperature reach to 50℃, the cooling fun will be start working automatically, so it can ensure the surface temperature is low; Using constant current soft-start control, to extend the life of heating elements.
Main technical of resistance lab muffle furnace :
| Items | Specification |
| Product name and model | SP-1200B-4.5L chamber lab muffle furnace |
| Useful chamber size | 150*150*200mm(4.5L W * H* D) |
| Max Temp | 1200℃ ( < 3 hrs) |
| Working Temp | 0-1100℃ (adjustable, for long time ) |
| Temp accuracy | ±1 ℃ |
| Heating rate | 1-20℃/min (adjustable,advise less than 15℃/min) |
| Heating Element | Resistance wire |
| Furnace liner | Light durable ceramic fiber plate |
| Rated Power: | 1.5KW |
| Furnace shell | Double shells with fan cooling |
| Temp. measurement | By K type thermocouple |
| Temp. Control | 30 segments programmable and PID auto control |
| Temperature display mode | Four Figure Liquid Crystal Display |
| Furnace surface temperature | ≤55℃ |
| Working Voltage | AC,1-phase ,220V ,50/ 60HZ |
| Optional part | Can be connected with computer if customer need |
| Freebies | 1.oven glove 1 set ; 2. Pliers 1pc |
Main uses of resistance lab muffle furnace:
1. Scientific research institutions: the laboratory does performance experiments of products or materials under high temperature conditions.
2. Thermal processing, industrial workpiece processing, cement, building materials industry, thermal processing or treatment of small workpieces.
3. Pharmaceutical industry: used for drug inspection, pretreatment of medical samples, etc.
4. Analytical chemistry industry: as sample processing in water quality analysis, environmental analysis and other fields, it can also be used for petroleum and analysis.
Delivery times :
♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;
♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.
Our Warranty :
Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
Our advantages:
♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
♥ We supply good service after sale, you can be assured about that
